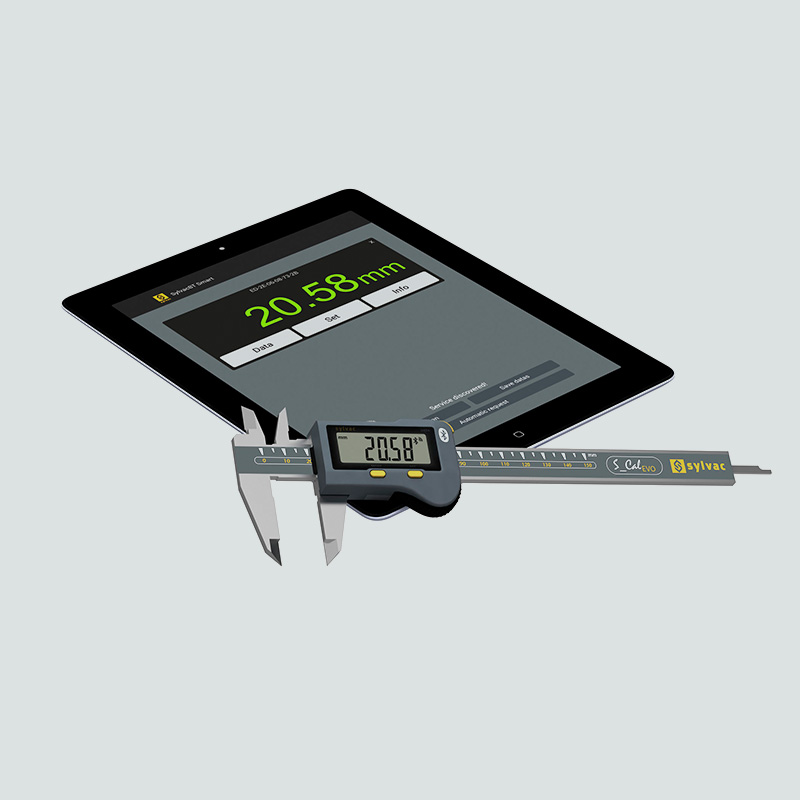

Digital Calipers

• Integrated Bluetooth® wireless technology
• New extra-large display
• Programmable button according to your needs
• Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529,
• Automatic wake-up by moving the electronic on his frame. (Absolute System S.I.S)
• Sleeping mode after 10 min. of no use. (Absolute System S.I.S)
• Position memorized in sleeping mode, Absolute System S.I.S*
• Maximum speed of displacement : 2.5 m/sec
• Mechanical frame in stainless steel, hardened and grinded
• Great comfort of use thanks to its ergonomic frame

HEIGHT GAUGE

• Height gauge with measuring range 700mm
• Extremely easy to use
• Electronically adjustable measuring force
• Manual or motor-driven displacement
• Standard probes up to 300 mm
• Vast range of accessories
• All adjustments possible without tools
• Possibility of using a thermal printer (926.1830)
• Battery life: 12 hours
• RS232 and USB interfaces

Digital Thickness Gauge / Feeler Gauge Smart

• Digital thickness gauge with integrated Bluetooth® Wireless technology
• For gap measurement and setting with data transmission
• Thickness: 0.05…1.00mm, 0.04…1.00mm ou 0.0020…0.0310inch
• First Sylvac instrument with HID technology
• Versions with 14, 19 or 20 gauges (according to model)
• Alignment of feelers in one crimp between the thumb and index finger
• Calculation and display of the stacking value of several gauges
• Instrument with a modern design that is easy to use

Ultra Light Caliper

• Ultra light caliper for external and internal measurements
• Integrated Bluetooth® wireless technology
• New Series with extra large display
• Aluminium beam reinforced by four stainless steel rods
• Long jaws 200 mm coated with titanium
• New carbide upper internal tips
• Measuring force applied control
• Protected IP67
• Extremely light instrument

Digital Indicators

• Integrated Bluetooth® Wireless technology
• Robust construction
• Water and coolant resistant
• New technology with configurable menus
• Broad choice of functions (MIN/MAX/DELTA, TOL, Factor, PRESET, AUTO OFF, etc.)
• Automatic wake-up and sleeping mode, Absolute System S.I.S*
• Maximum error of 3 μm

Bench Table

• Integrated Bluetooth® Wireless technology
• Brand new design with integrated display resolution 0.1μm
• The bench tables PS16 V2 are designed to check dimensions up to 50 mm
• These bench tables can be equipped with different kind of tables to fit your needs as well as with several types of anvils of any shapes
• A ball bearing, as well as many other features and accessories make these tables a must for your workshop or your inspection room
• Adjustable measuring force
• Led tolerances status
• Data output USB and Proximity
• Standard measuring anvils Ø 1.5 mm

Digital Display

• Digital display with 8.5’’ touchscreen
• Available in 3 versions:

– 6 USB and M-Bus

– 6 USB and 2 Sylvac capacitive probe input

– 6 USB and 4 Sylvac capacitive probe input

– M-Bus and 2 Sylvac capacitive probe input

– M-Bus and 4 Sylvac capacitive probe input

• Automatic detection of connected instruments
• CPU 5 times faster that previous version
• OS based on Windows CE 7 embedded
• Display and page setting fully configurable (up to 8 channels per page, up to 64 pages)
• Memorizing of setups and values
• RJ-45 Ethernet connector
• General or individual Preset
• Math functions for each channel
• Numeric, analog and statistic display
• Compatible with instruments with Bluetooth® Wireless technology

Digital Display

• New compact display unit exclusively for P12D probes with industrial connector M8
• 2x P12D probe inputs (M8)
• Innovative modern design
• Large touch screen display 4.3’’ with intuitive functions
• Shockproof construction
• Built-in battery autonomy 8 hours (depends on model)
• Indication of the global tolerance (depends on model)
• Data output RS232, USB or Bluetooth® technology (depends on model)
• Programmable by PC

Bore Gauge

• Instruments covering a large measuring range (2 – 300 mm)
• Blind bore measurement from 2 to 6 mm and from 12.5 mm
• Interchangeable measuring heads
• UKAS certificate included with all rings
• UKAS certificate included with each instrument
• Manufactured according to DIN863
• Memorization of 4 ring gauges values
• Water and coolant resistant, protection rating IP67 according to IEC 60529
• Programmable by PC
• S_Connect Proximity

Professional Digital Micrometer

• Automatic wake-up by moving the measuring spindle (Absolute System S.I.S)
• Sleeping mode after 20 min. of no use (Absolute System S.I.S)
• Position memorized in sleeping mode, Absolute System S.I.S*
• Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529, even connected
• Measuring range 0-161 mm covered with 5 instruments only
• Set of 3 micrometers 0-102 mm available
• Quick displacement of the measuring spindle 10 mm / rotation
• Adjustable measuring force 5N / 10N (versions 903.030X)
• Repeatability and reproducibility never reached before
• Thimble in polyacetal-copolymer
